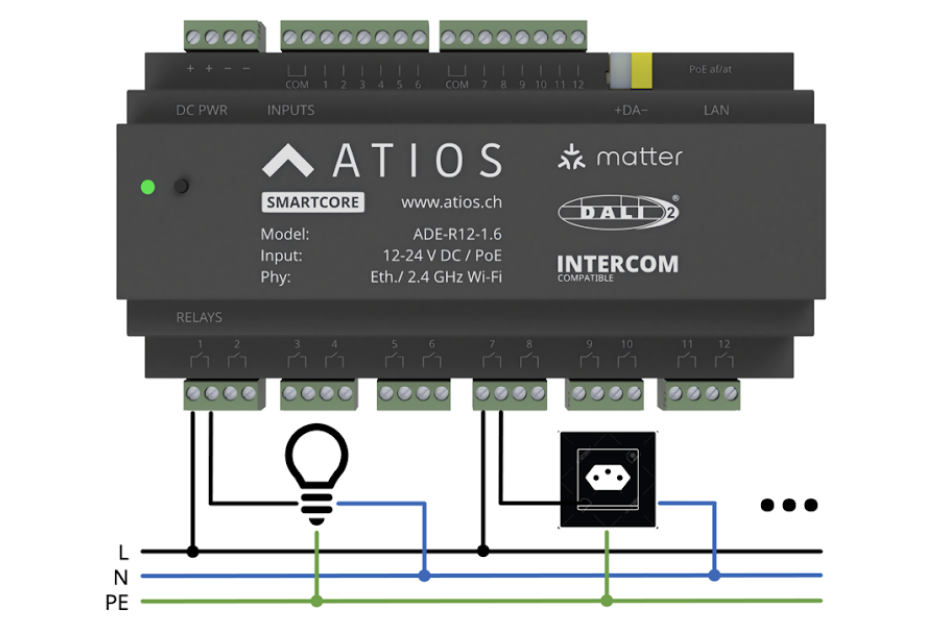

¶ Wiring Example 230V Loads
Each of the 12 relays (16 A, bistable) has potential free contacts. AC phases and voltages can be mixed.
¶ Wiring Example 24V Loads
Each of the 12 relays (16 A, bistable) has potential free contacts. AC phases and voltages can be mixed.

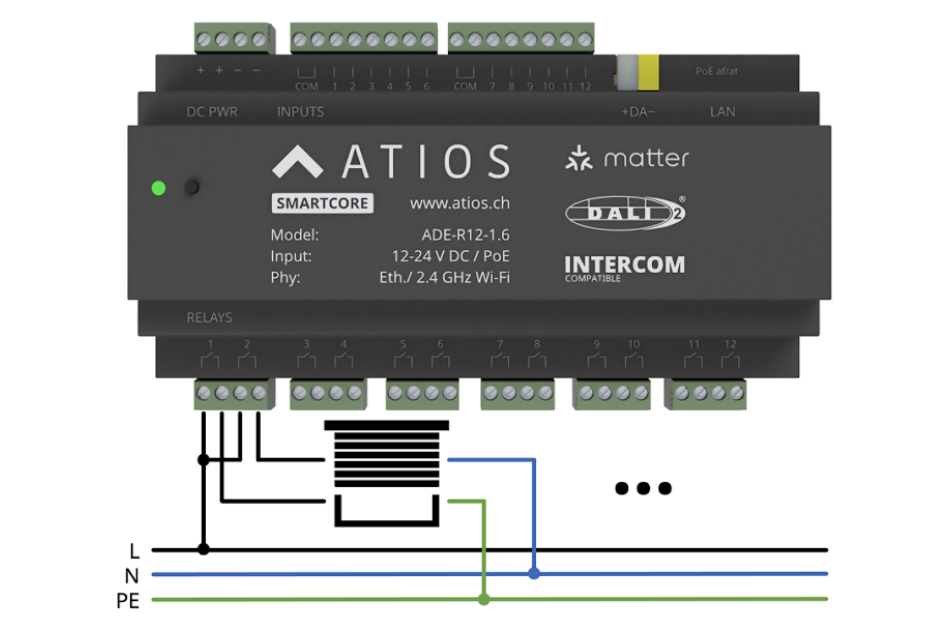

¶ Wiring Example Window Covering
Each of the 12 relays (16 A, bistable) has potential free contacts, so the supply phase for the motor needs to be connected to each of the relays used for up and down direction. If the motor has no in-built snubber, an external snubber has to be connected to prevent the relay contacts from damage.

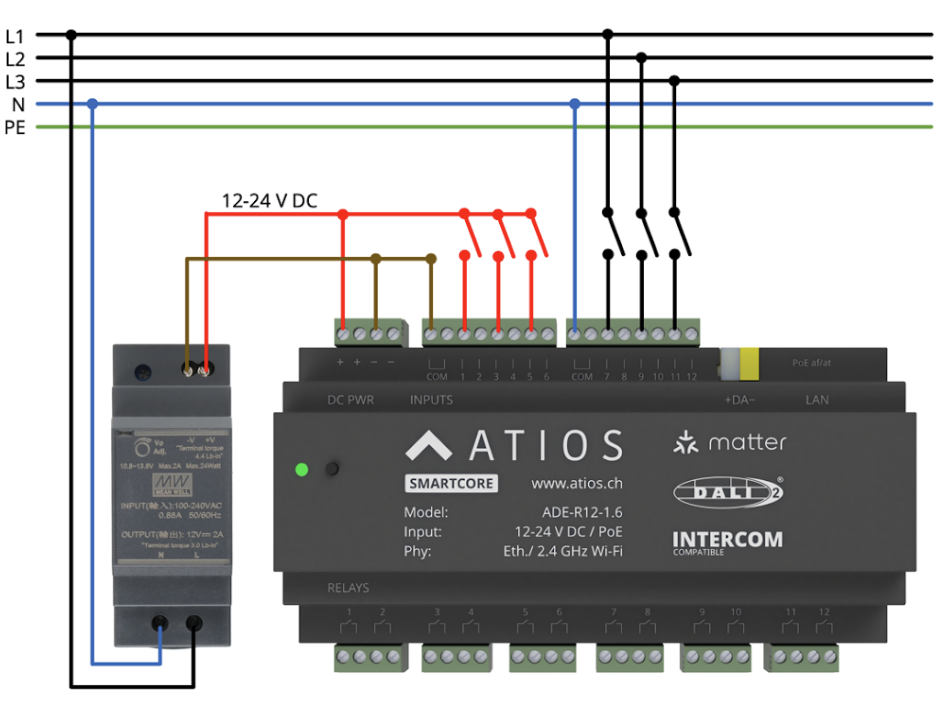

¶ Wiring Example Inputs and 24V Power Supply
Atios SmartCore is powered by an external 24V Power Supply. Do not connect it at the same time to Power over Ethernet. All 12 inputs are opto-isolated and therefore need a reference connected to the COM terminal. Input 1 to 6 have the same reference, vice versa for Input 7 to 12. The wide range inputs detect voltages from 12 V DC up to 230 V AC. For DC inputs the reference voltage has to be GND, for AC inputs neutral. Do not mix input voltages in between 1 to 6 and 7 to 12. In case of AC inputs, phases L1 to L3 can be mixed, since the current flow is maximal 2mA.
¶ Wiring Example DALI

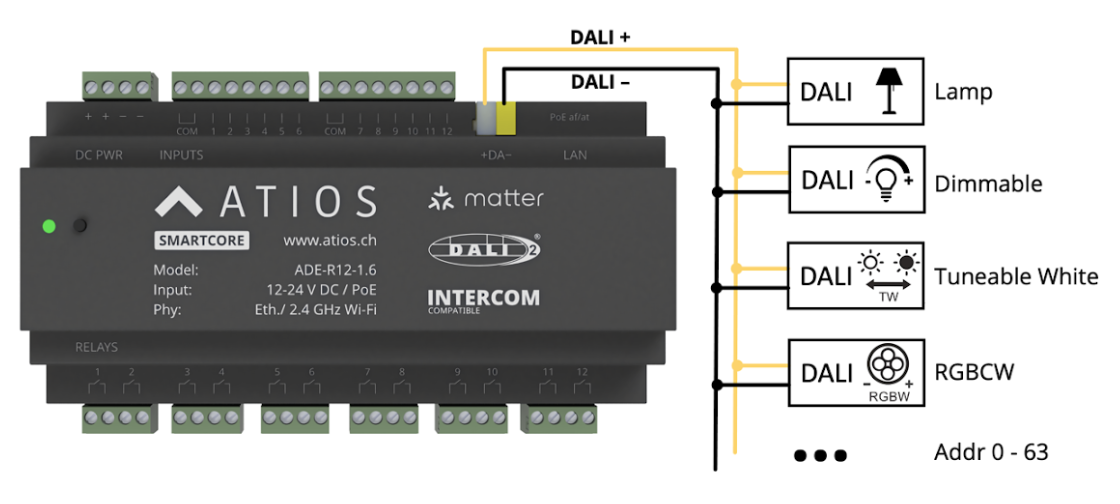

As can be seen in the picture below, Atios SmartCore can be connected to a DALI Bus. The DALI Bus can be powered externally, or with the integrated DALI power supply from Atios SmartCore. Only use either or, do not use both at the same time.

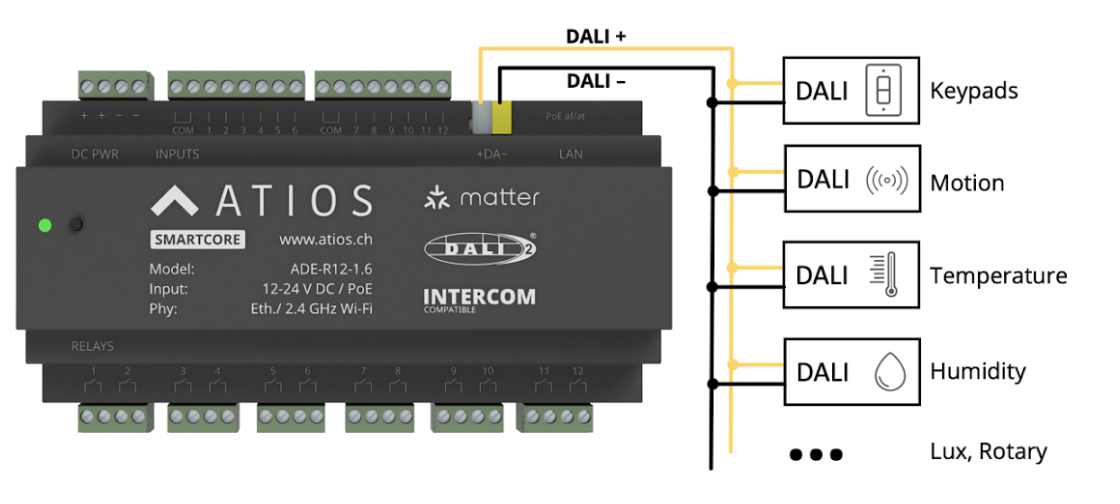

Atios SmartCore can act as a DALI-2 Master Controller and receive events from connected DALI-2 sensors in instance mode. These events can be processed and connected loads can be controlled accordingly.
