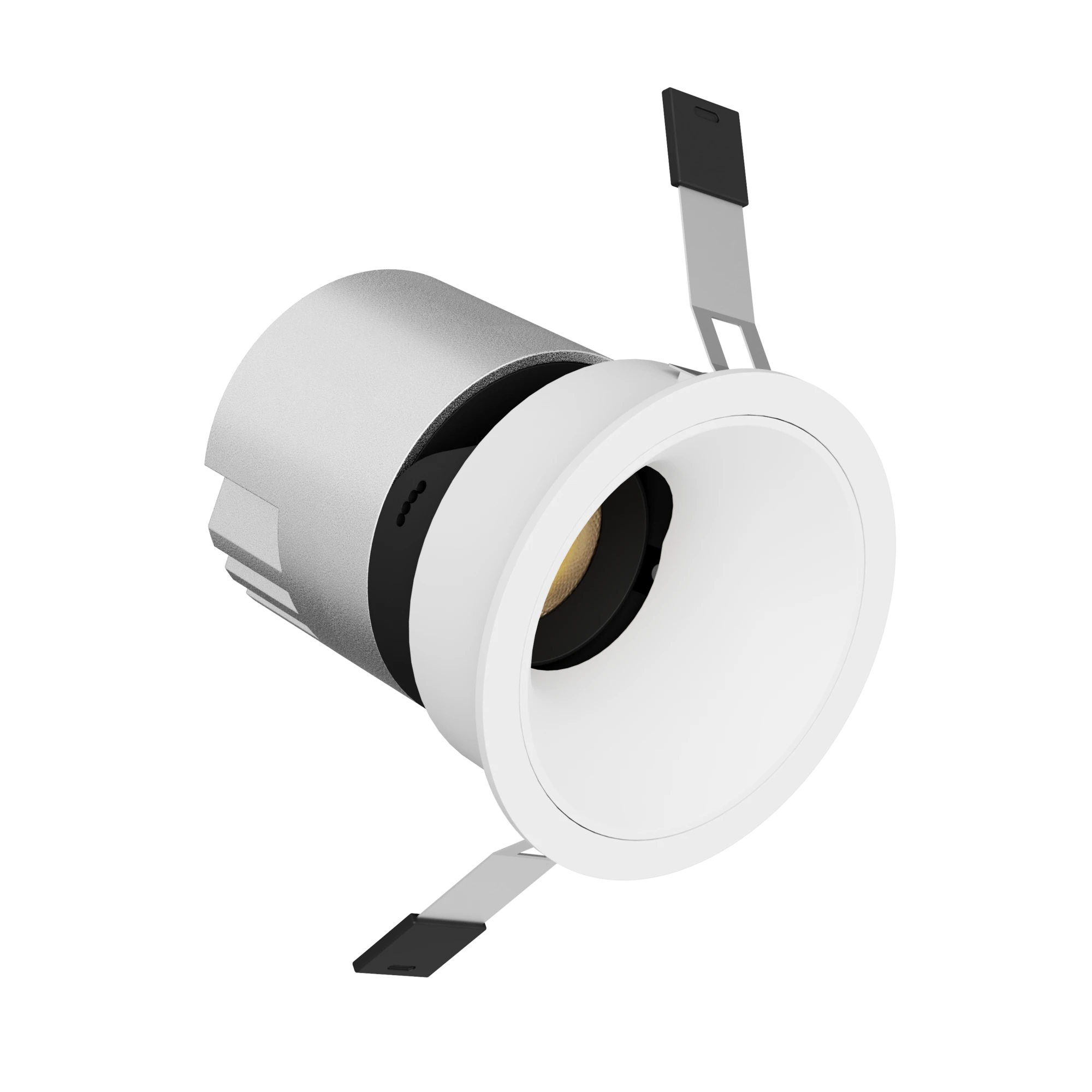

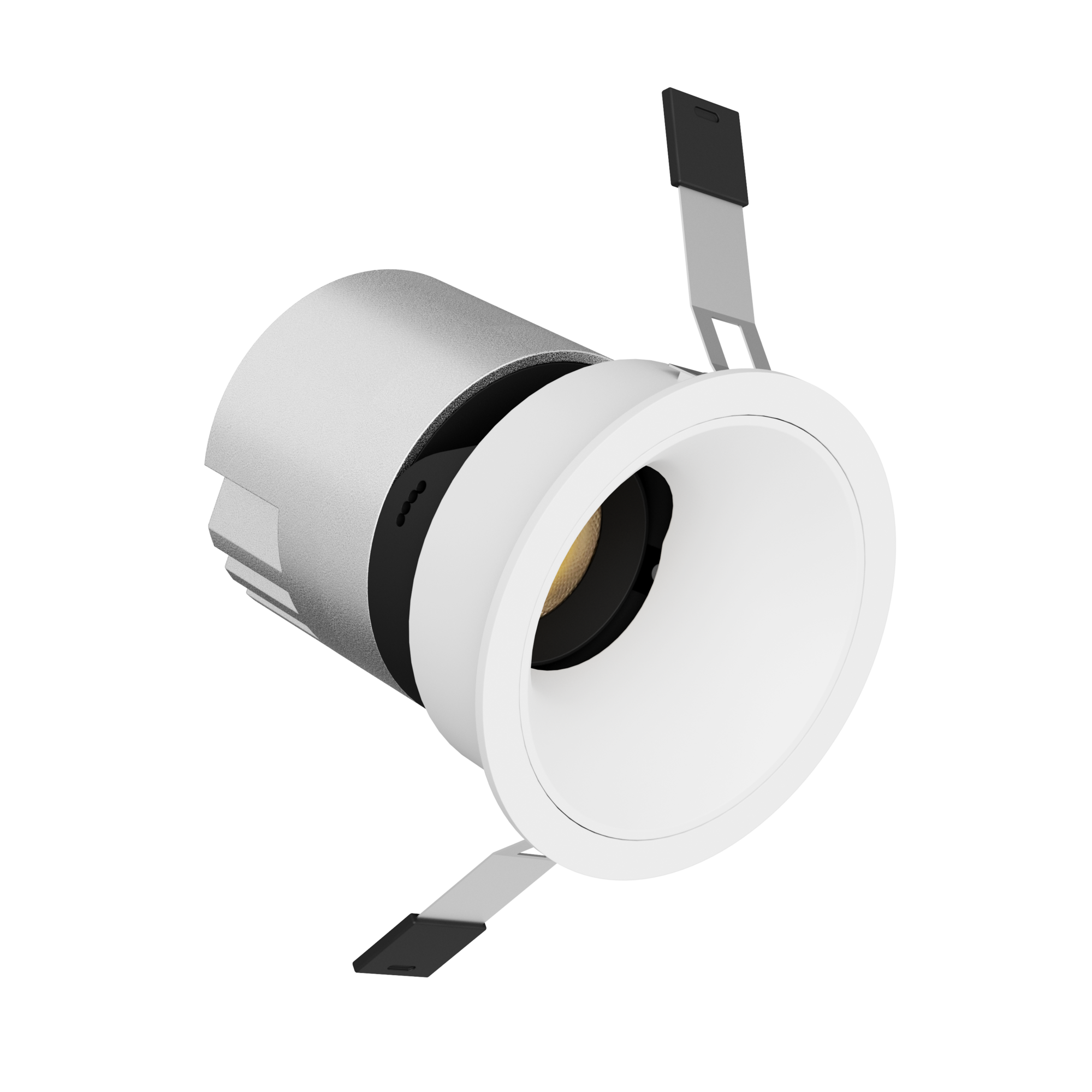

Atios DALI Spot ALD-TW75 Datasheet
Technical Specifications
| Rated voltage | 220–240 V AC, 50/60 Hz |
| Rated power | 12 W |
| Power factor | > 0.9 |
| Driver | Integrated constant-current LED driver |
| Colour temperature | 2700 K – 6500 K (tunable white) |
| Colour rendering (CRI) | Ra 97 |
| Beam angle | 50° (flood) |
| DALI protocol | DALI-2 |
| Device type | DT8 (tunable white, Tc subtype) |
| DALI addresses | 1 per fixture |
| Dimming | 100 % to 1 % via DALI |
| Mounting | Recessed ceiling spot |
| Cut-out diameter | Ø 75 mm |
| Protection | IP 20 (indoor, dry rooms) |
| Ambient temperature | −20 °C to +40 °C |
| Certifications | CE, RoHS, DALI-2 certified, ISO 9001:2015 |
Application area and features
- Recessed LED ceiling spot with integrated driver, no remote power supply or large can required.
- Tunable white from 2700 K (warm) to 6500 K (cool), individually controlled per fixture.
- Wide 50° beam for general ambient lighting.
- Native DALI-2 (DT8) control: brightness and colour temperature on a single DALI address.
- Plug-and-play with the Atios SmartCore, addressed and configured via the Web Interface, no programming knowledge needed.
- Smart-home control via the Atios SmartCore (Matter): appears as a tunable white light in Apple Home, Google Home, Samsung SmartThings, Amazon Alexa, Home Assistant, Homey and all other Matter platforms.
- Scenes, automations, multi-user access and push notifications via Apple Home, Google Home, Samsung SmartThings, etc.
