Quick Start ​

The DALI-2 Relay Module is an in-wall device that switches one load on and off via DALI. It takes its power from the DALI bus and needs no extra power supply.

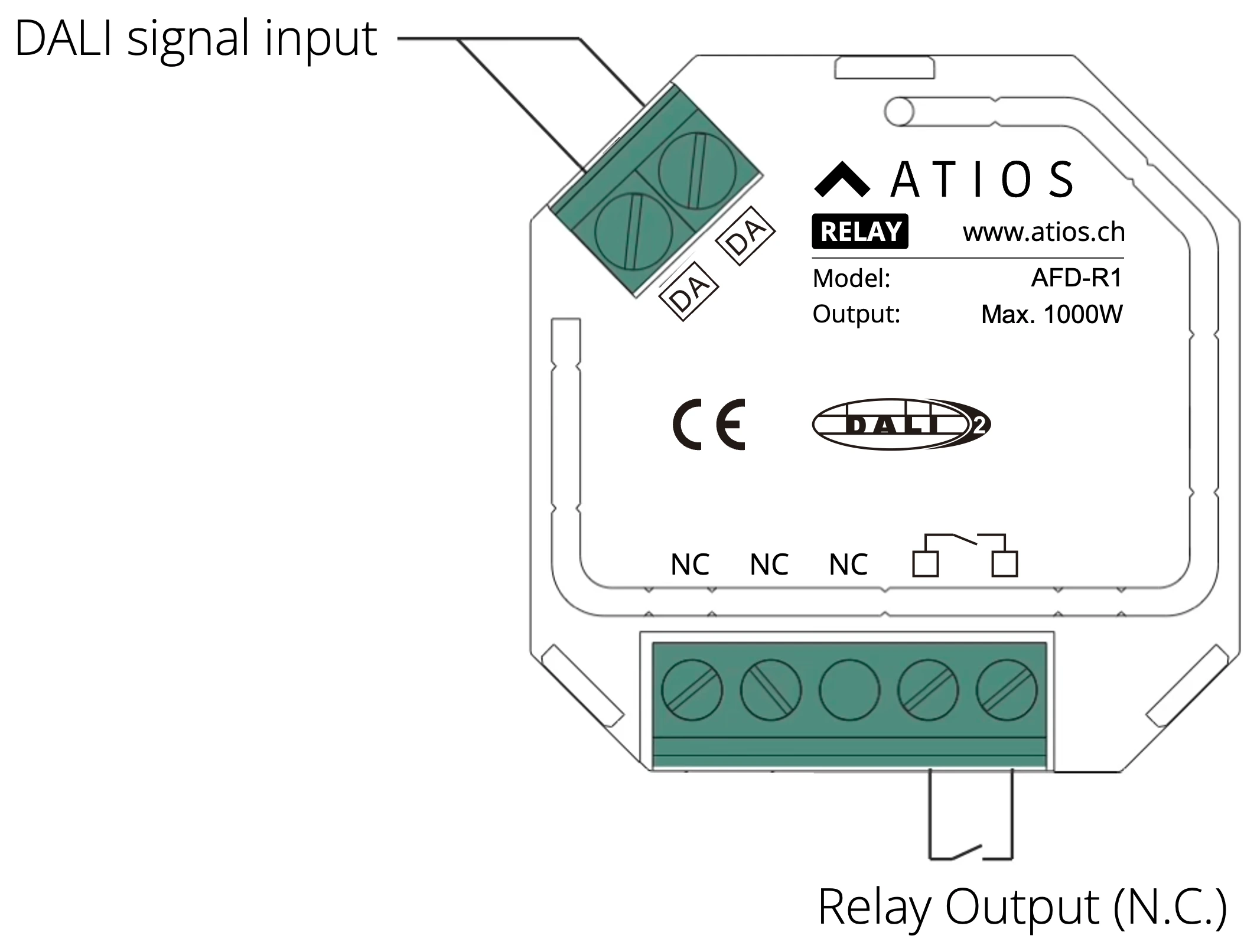

Atios DALI-2 Relay Module

Key features ​

  • DALI-2 certified relay module, DALI DT7, one DALI address
  • One relay output, normally closed (N.C.)
  • Switches up to 250 V AC or 30 V DC
  • Up to 1000 W at 230 V AC, depending on load type, see Datasheet for the full table
  • Can control one standard contactor
  • Fits a standard wall box, IP20

What you need ​

  • Atios DALI-2 Relay Module
  • A DALI bus with a DALI master controller
  • A load within the rated output, see Datasheet

Lights and inputs

A DALI bus has two kinds of devices:

  • Lights (control gear): the devices that switch or dim your lights, for example LED drivers, dimmers and relays.
  • Inputs (control devices): the devices you press or that detect something, for example push buttons, motion sensors and light sensors (lux).

Each group has its own 64 addresses. So one DALI bus can hold up to 64 lights and, in addition, up to 64 inputs.

One input device can contain several buttons or sensors, but it still uses only one address. The Atios DALI-2 Relay Module counts as one light and uses one address.

1. Mount and wire the device ​

Fit the relay module into a standard wall box. Wire the DALI bus to the DA terminal and your load to the relay output. For full wiring details, go to Installation.

2. Set the DALI address ​

The DALI master assigns the address automatically. Refer to your DALI master's own documentation for the exact procedure.

3. Switch the load ​

The DALI master switches the load on and off via DALI. For details, go to Operation.
