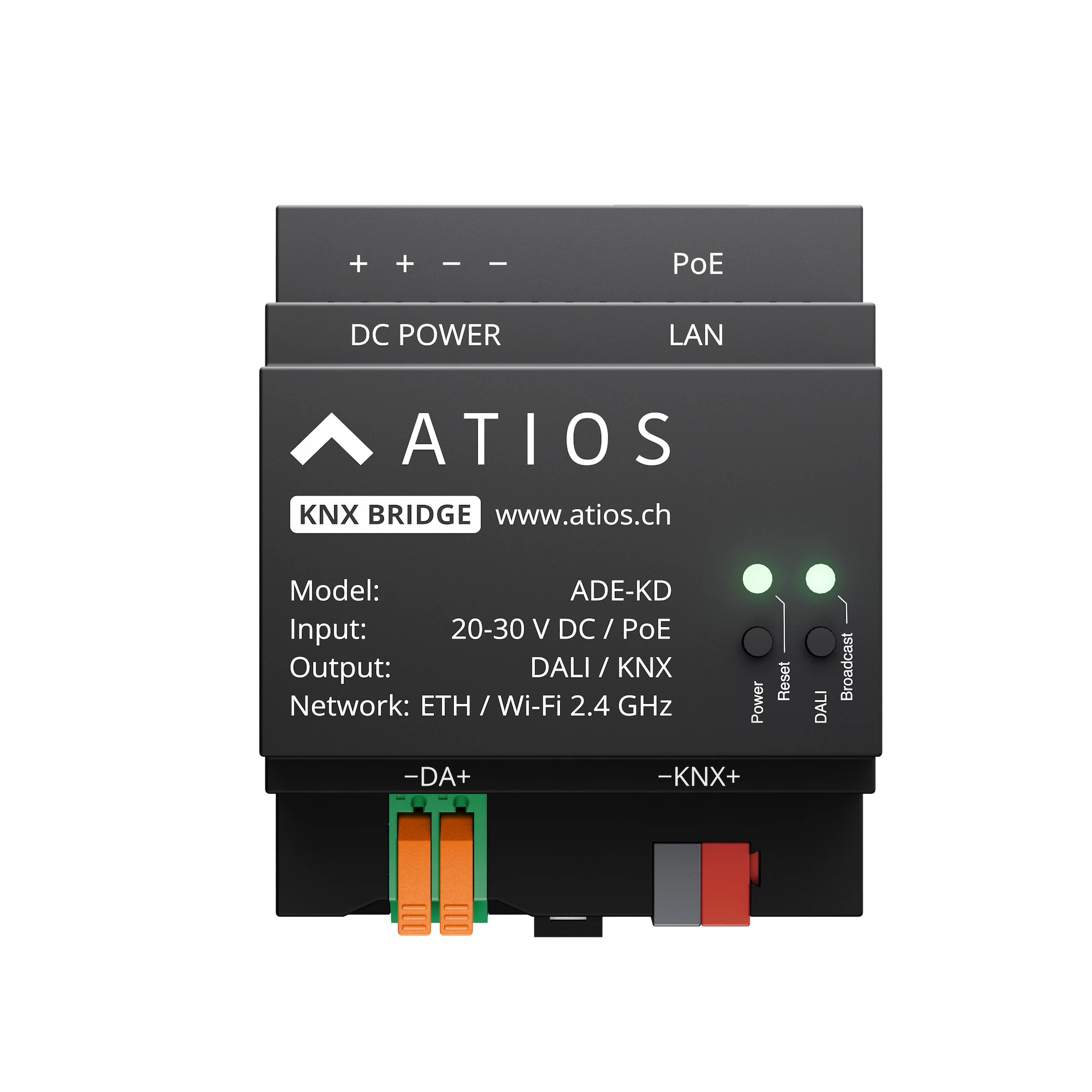

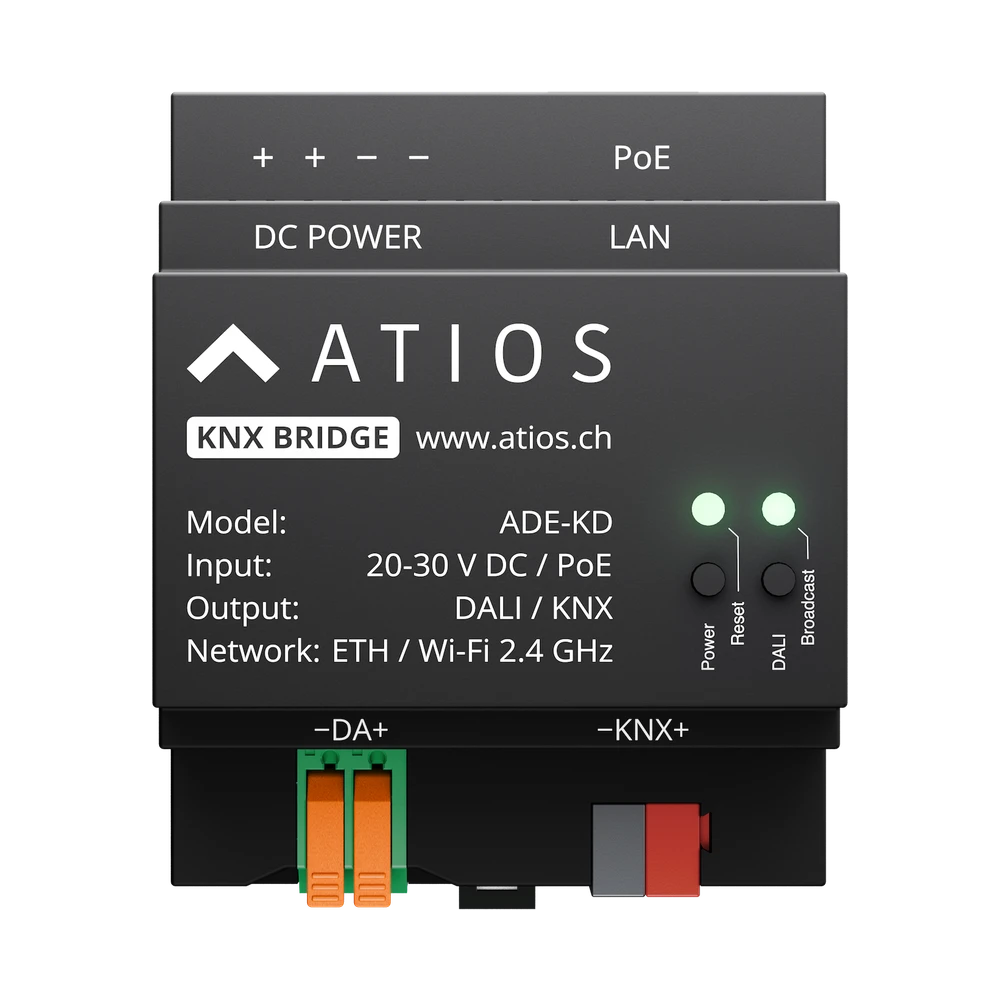

KNX Bridge
ADE-KDMatter BridgeKNX-DALI GatewayKNX Remote AccessKNX IP Interface
The central piece of any KNX installation. Combines multiple devices into a single unit.
- Bus standards
- KNX, DALI
- Power supply
- PoE or 20-30 V DC
- Communication
- Ethernet, Wi-Fi
- Built for
- residential KNX installations

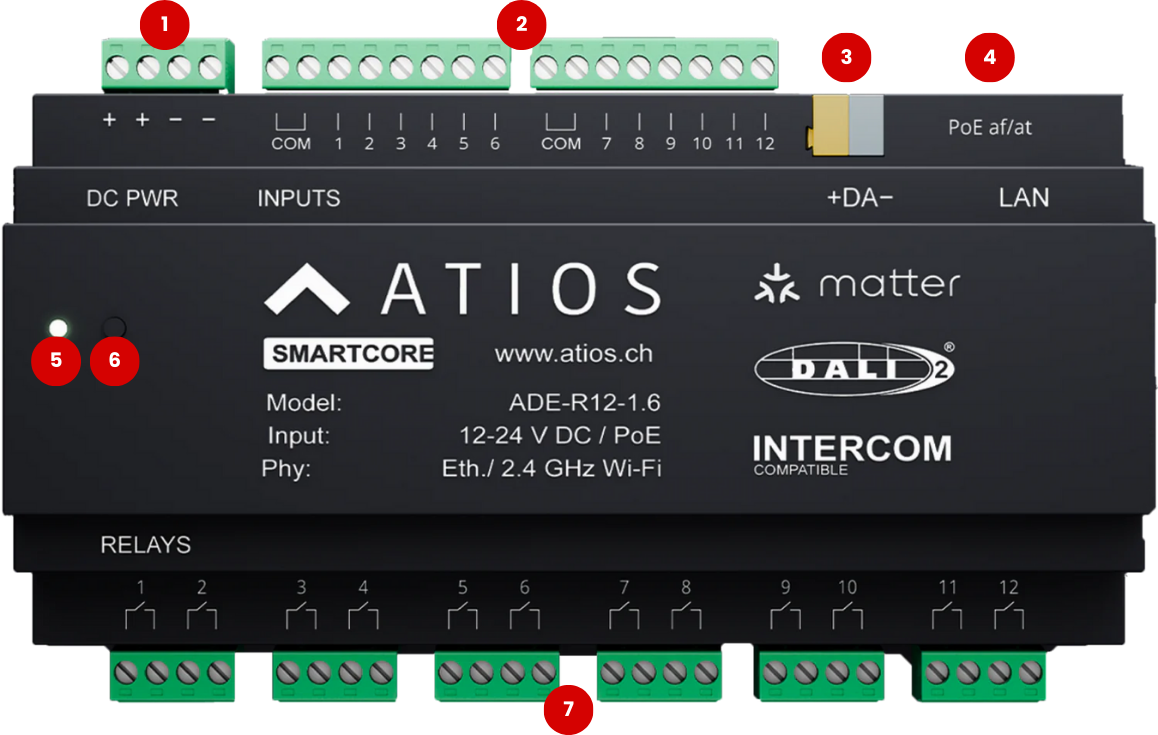

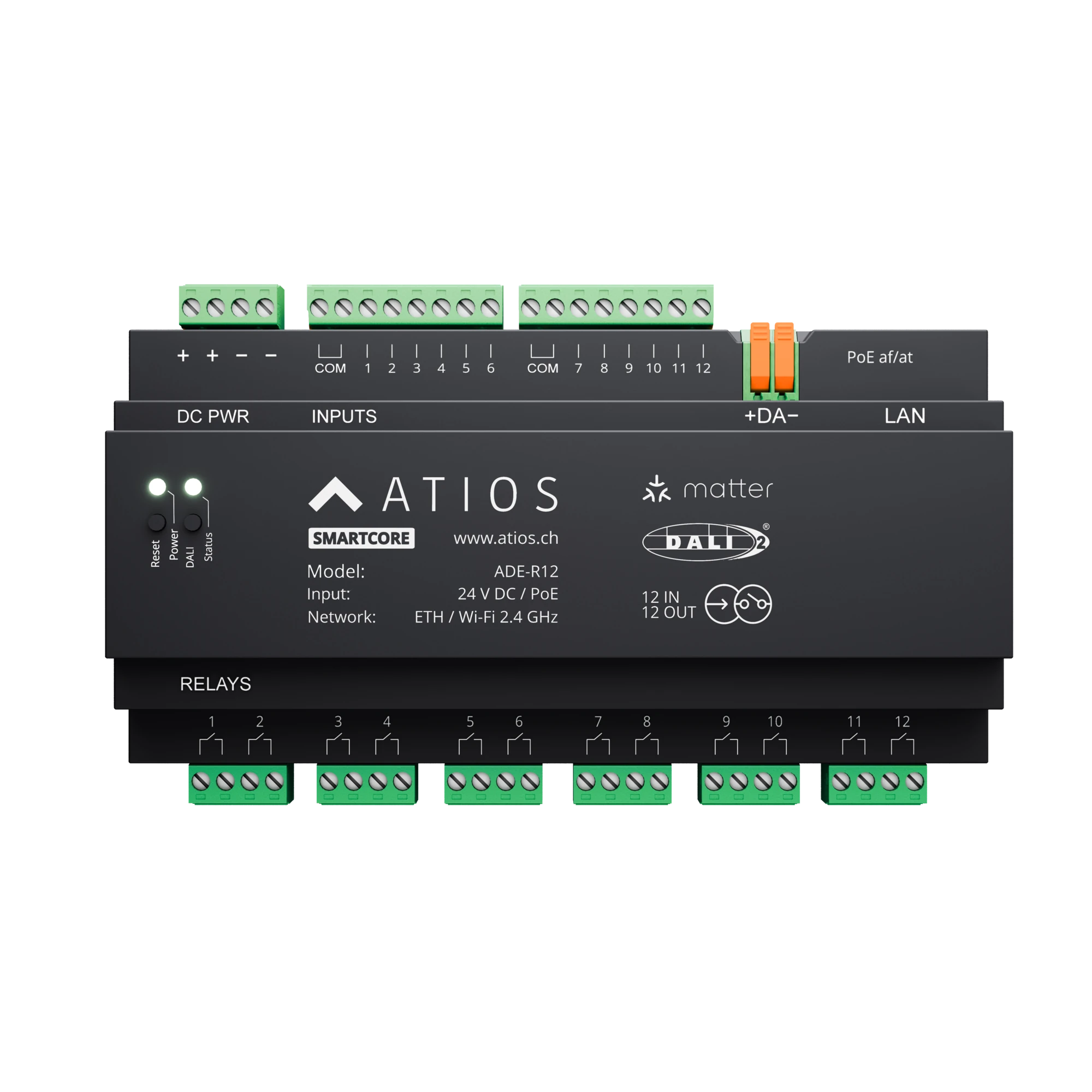

SmartCore
ADE-R12Matter BridgeDALI-2 Master12 Digital Inputs12 Relay Outputs
Standalone controller for cost-effective, reliable smart homes. Easy and fast configuration.
- Bus standards
- DALI-2 (IEC 62386 Multi Master)
- Power supply
- PoE or 20-30 V DC
- Communication
- Ethernet, Wi-Fi
- Built for
- apartments, hotel rooms, commercial spaces

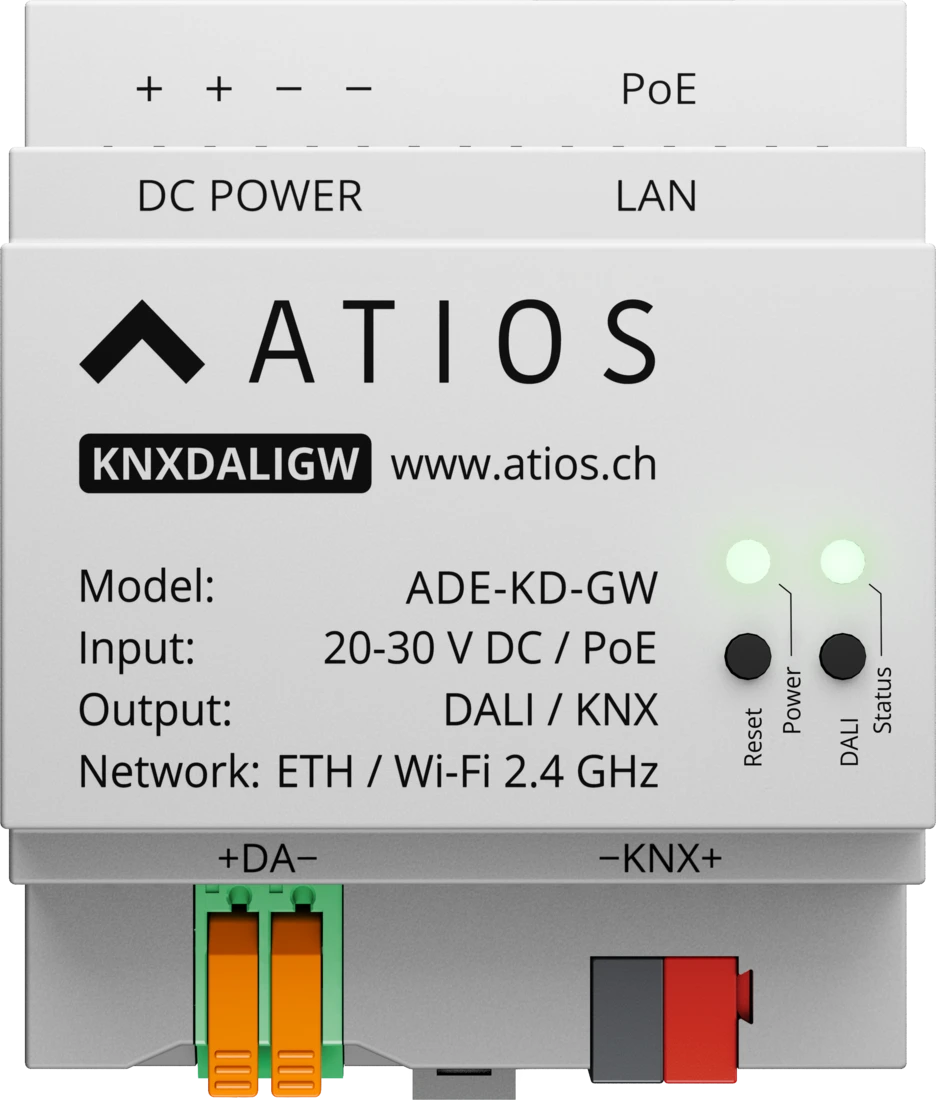

KNX-DALI Gateway
ADE-KD-GWKNX GatewayDALI-2 / DT864 Devices
KNX to DALI-2 gateway for tunable white and colour lighting.
- Bus standards
- KNX, DALI-2
- Power supply
- PoE or 20-30 V DC
- DALI capacity
- 64 control gear, 16 groups
- Built for
- KNX installations with DALI lighting

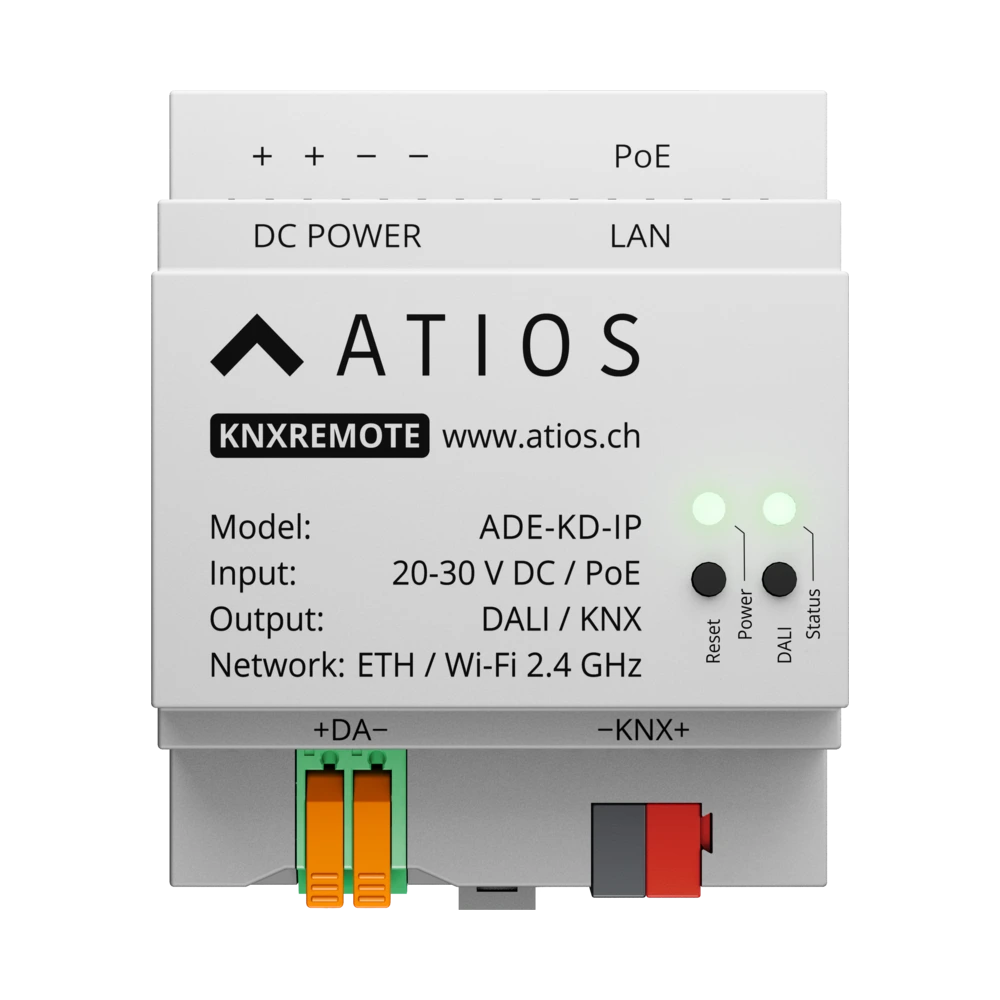

KNX Remote Access
ADE-KD-IPRemote ETS AccessCloud InterfaceKNX SecureAccess Tokens
Securely access and program your KNX installation from anywhere over the internet.
- Bus standards
- KNX
- Power supply
- PoE or 20-30 V DC
- Communication
- Ethernet, Wi-Fi
- Built for
- remote ETS access

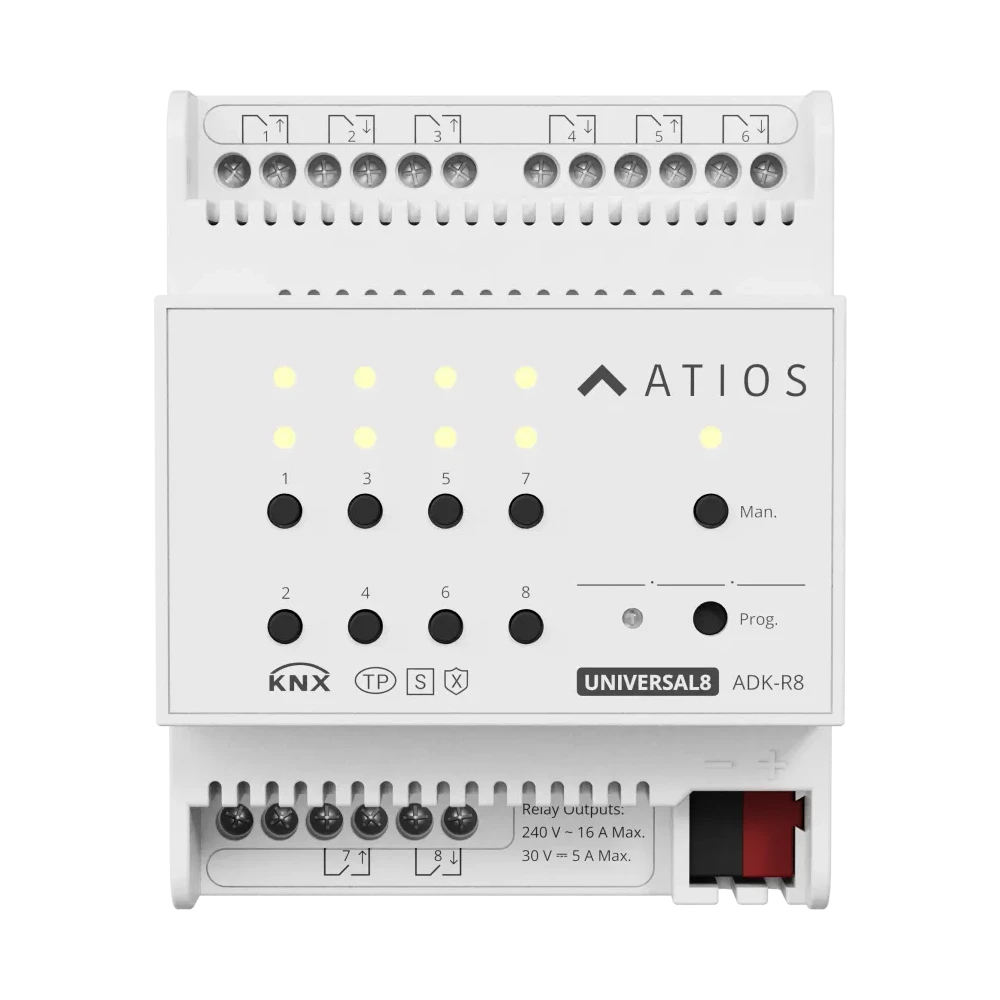

KNX Universal8
ADK-R8KNX Actuator8 Relay OutputsKNX Secure
KNX 8-channel universal switching actuator.
- Bus standards
- KNX
- Power supply
- 21-30 V DC via KNX bus
- Outputs
- 8 relays, 16 A AC / 5 A DC
- Built for
- KNX installations: switching, shutters, fan coil, valves

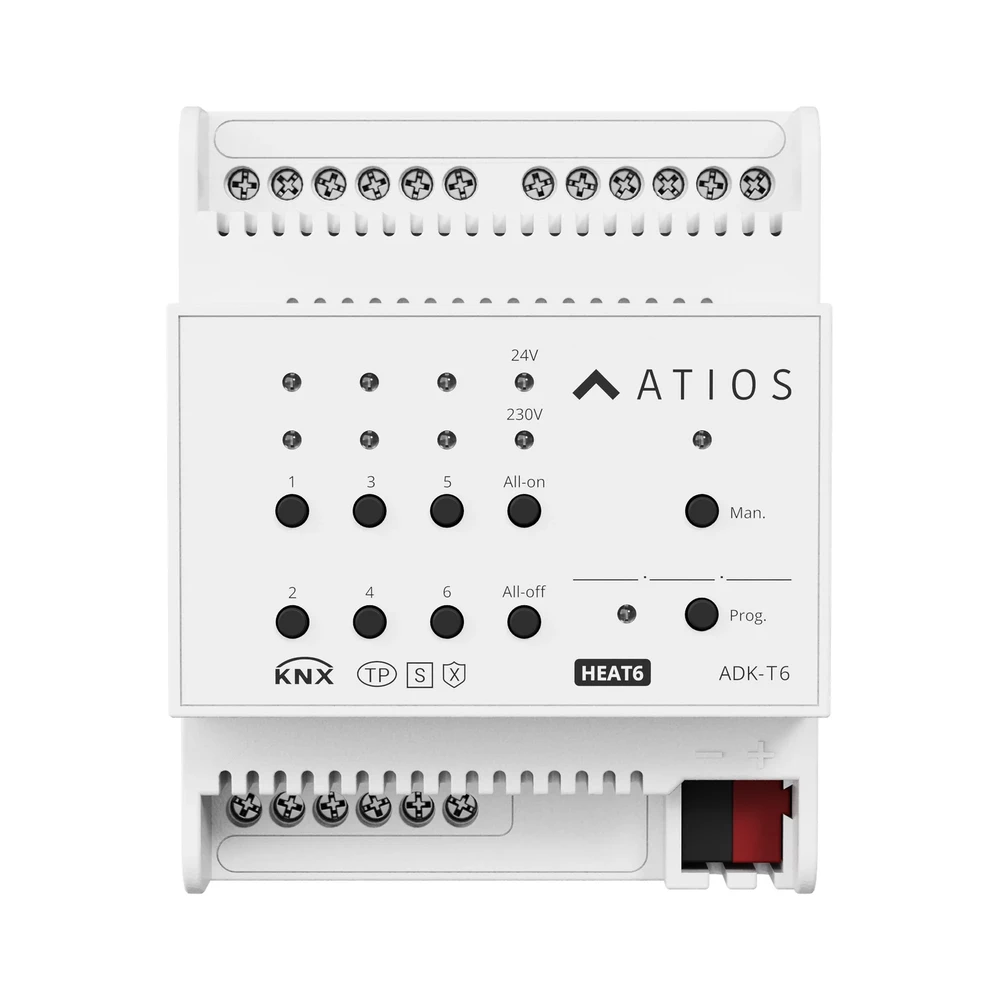

KNX Heat6
ADK-T6KNX Actuator6 Valve OutputsHeating & CoolingKNX Secure
KNX heating actuator with 6 triac outputs for thermal valves.
- Bus standards
- KNX
- Power supply
- 21-30 V DC via KNX bus
- Outputs
- 6 triacs, 24 V AC or 230 V AC, max. 300 mA each
- Built for
- KNX installations: underfloor heating, radiators, cooling circuits

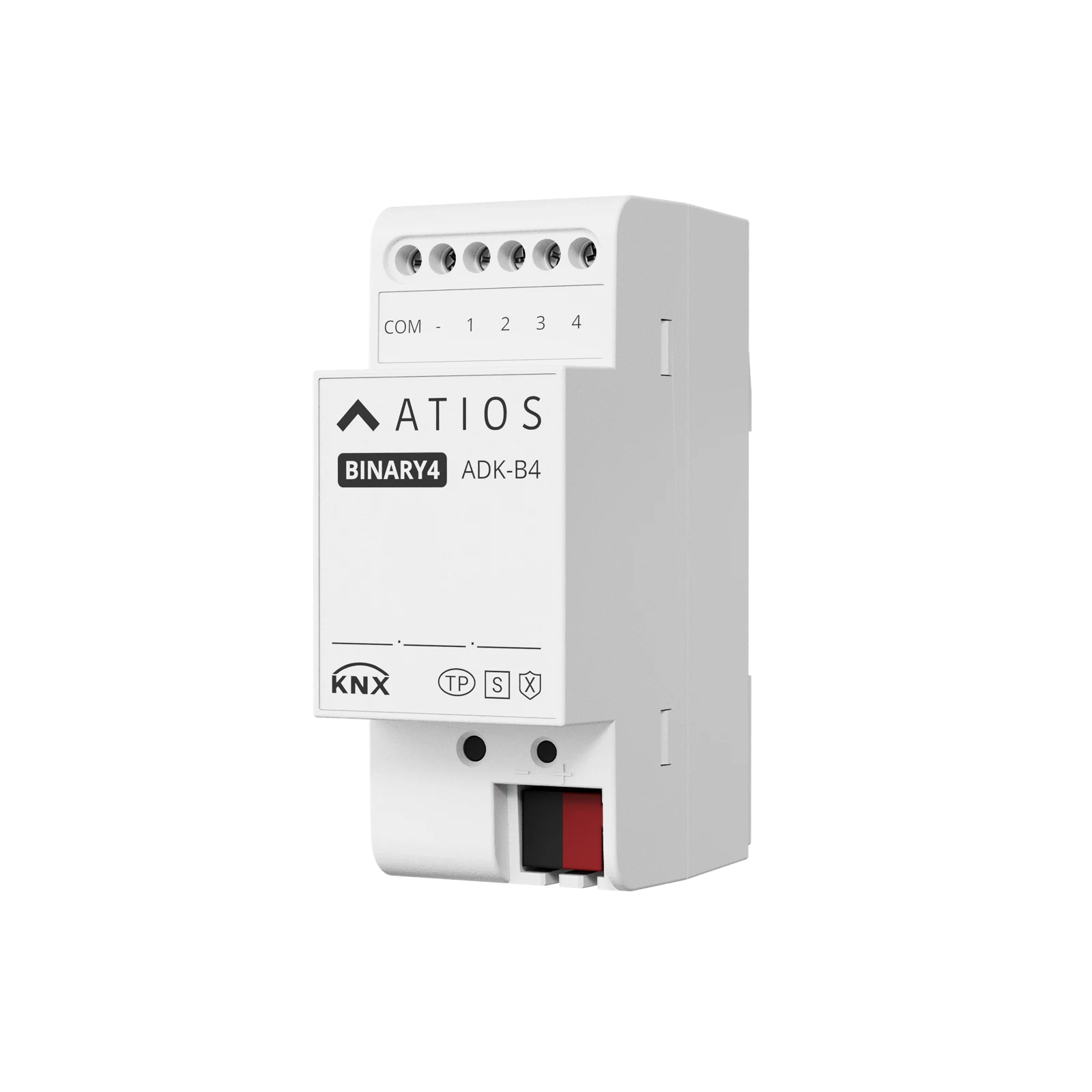

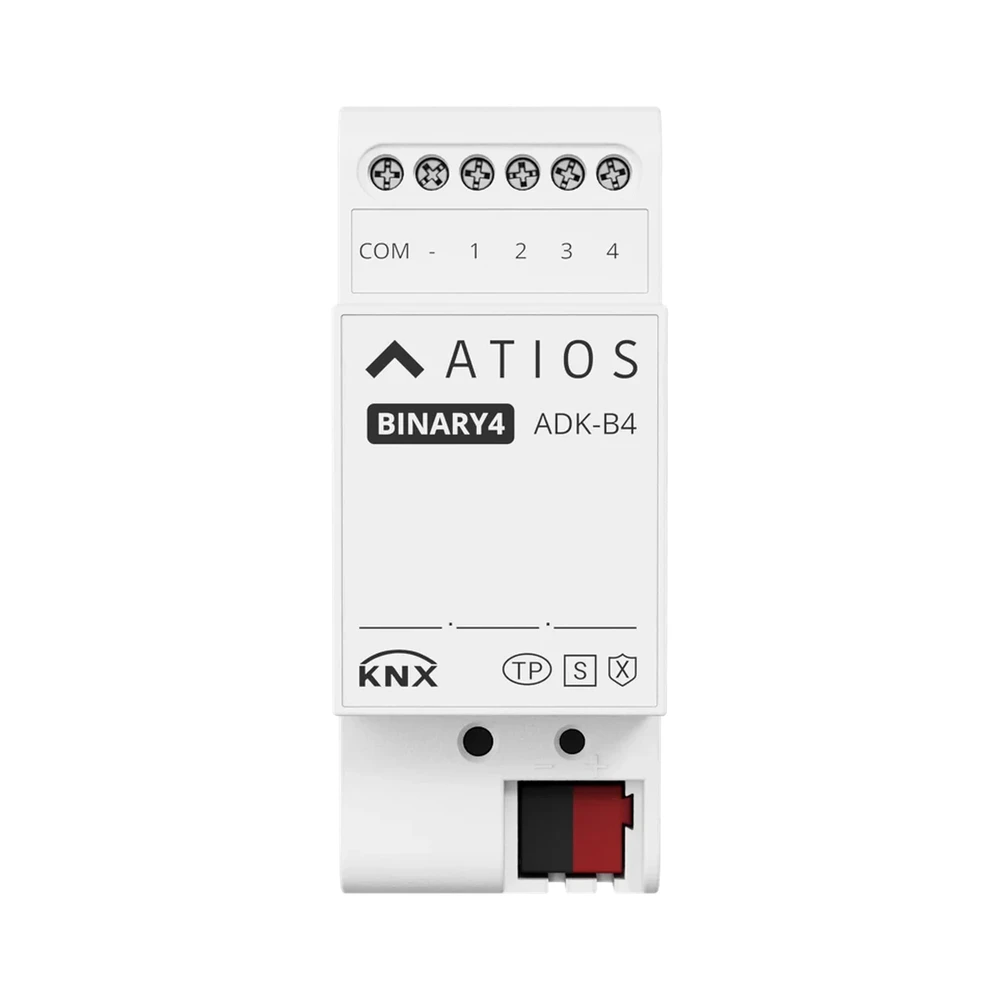

KNX Binary4
ADK-B4KNX Binary Input4 Inputs8 Logic FunctionsKNX Secure
KNX binary input for 4 floating contacts.
- Bus standards
- KNX
- Power supply
- 21-30 V DC via KNX bus
- Inputs
- 4 floating contacts, up to 100 m at 1.5 mm²
- Built for
- KNX installations: switches, push buttons, window contacts

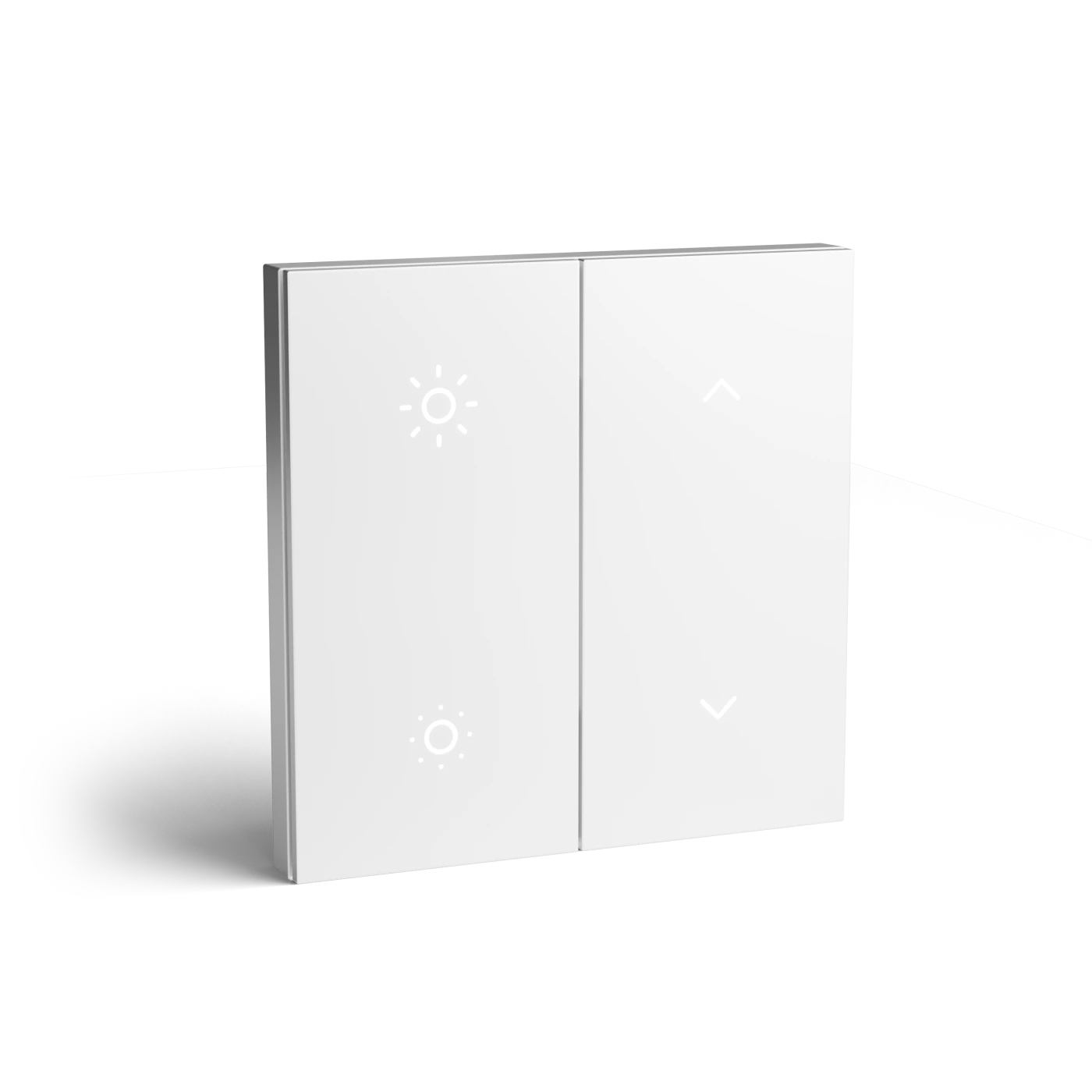

KNX Keypad
ASK-B4KNX Keypad2 or 4 ButtonsTemperature Sensor
Flush-mount KNX keypad with 2 or 4 buttons. Backlight, proximity and temperature sensors.
- Bus standards
- KNX
- Power supply
- 21-30 V DC via KNX bus
- Inputs
- 2 or 4 buttons

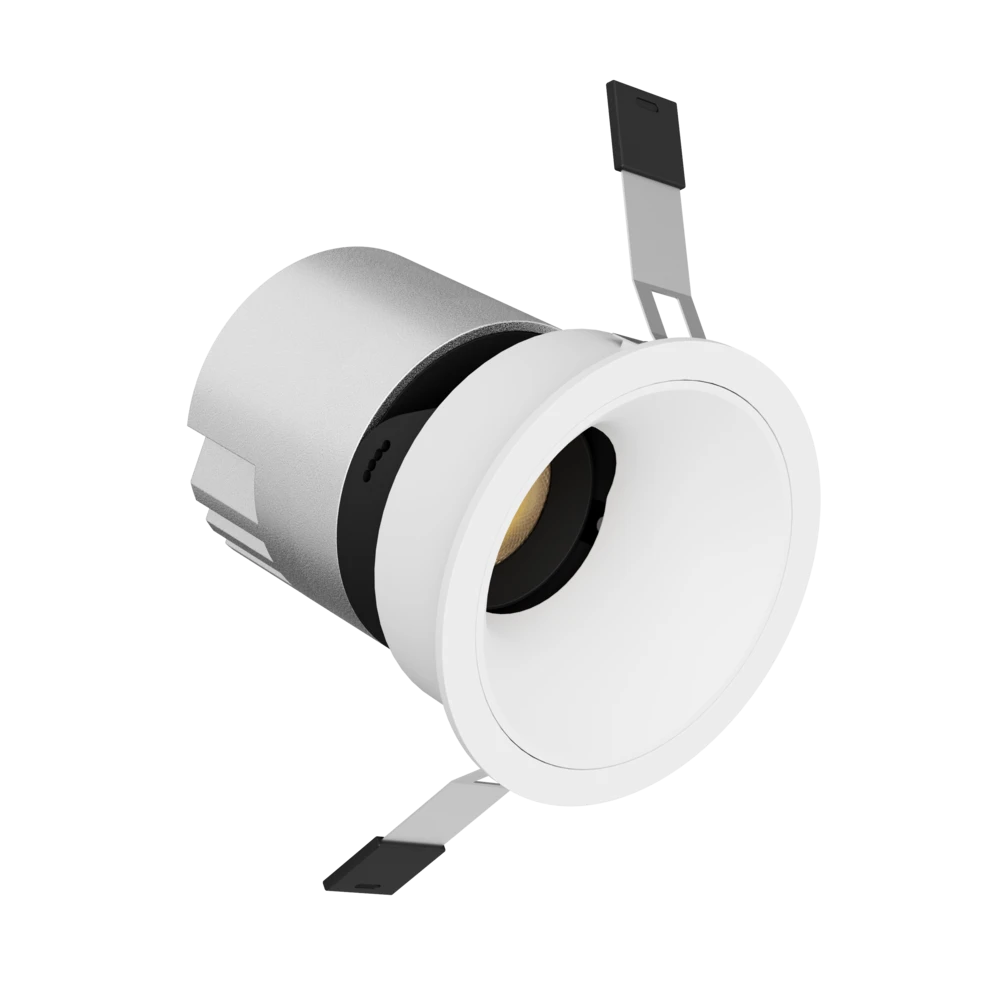

DALI Spot Tunable White
ALD-TW75DALI-2 / DT8Tunable WhiteCRI Ra 97
DALI-2 tunable white recessed ceiling spot.
- Bus standards
- DALI-2 (IEC 62386)
- Power supply
- 220-240 V AC
- Rated power
- 12 W
- Cut-out
- Ø 75 mm
DALI-2 Button Coupler
AFD-B4DALI-2 Input Device4 Inputs
In-wall DALI-2 input coupler. Connects 4 switches to the DALI bus.
- Bus standards
- DALI-2 (IEC 62386)
- Power supply
- DALI bus (<2 mA)
- Inputs
- 4 potential-free
- Built for
- DALI installations

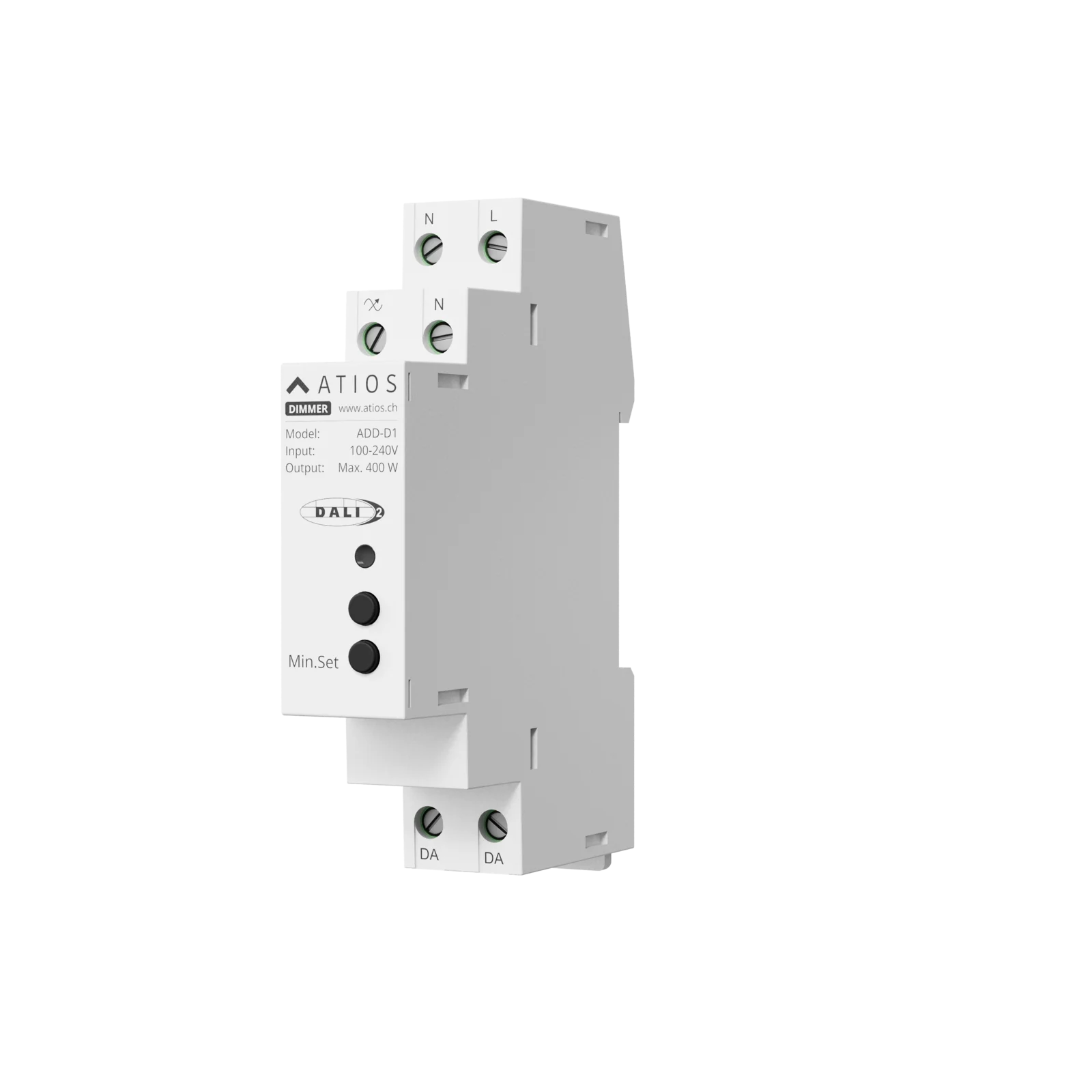

DALI AC Dimmer DIN
ADD-D1DALI DimmerPhase Cut1 ChannelUp to 400 W
AC phase dimmer for the DIN rail. Controlled over DALI or a local push switch.
- Bus standards
- DALI
- Power supply
- 100-240 V AC, 50/60 Hz
- Output
- 1 channel, 0.1-1.8 A, up to 400 W
- Built for
- DALI installations: LED, incandescent, halogen loads
