Atios Heat6 ADK-T6 Datasheet

EAN 7649988416682

Download as PDF

Technical Specifications

KNX bus	21-30 V DC via the KNX bus, <13.5 mA at 24 V, <11.5 mA at 30 V, <345 mW
Valve outputs	6 channels, ≤300 mA per channel at 35 °C ambient
Drive voltage	24 V AC or 230 V AC
Room temperature controllers	6, heating and cooling mode, 2-point and PI control, 5 scenes
Protection	Short-circuit and overload protection
Manual operation	One button per channel plus Man./Auto. button, with status LEDs
Terminals	KNX bus terminals; screw terminals 0.2-2.5 mm², 0.4 N·m
Ambient temperature	−5 °C to +45 °C (operation), −25 °C to +55 °C (storage), −25 °C to +70 °C (transport)
Humidity	< 93 %, non-condensing
Mechanical data	MDRC, 35 mm DIN rail (EN 60 715), 72 × 90 × 64 mm, 0.30 kg
KNX Secure	Supported

Application area and features

• KNX heating actuator with six valve outputs for thermal actuators, each individually configurable and driven by a local or an external controller.
• Drives 24 V AC or 230 V AC thermal actuators.
• Six room temperature controllers with heating and cooling mode, 2-point or PI control.
• Manual operation on the device, with one button and a status LED per channel.
• Summer and winter mode, valve purge, valve disable and forced operation.
• Reports operating voltage failure, short-circuit and overload status.
• Supports KNX Secure.

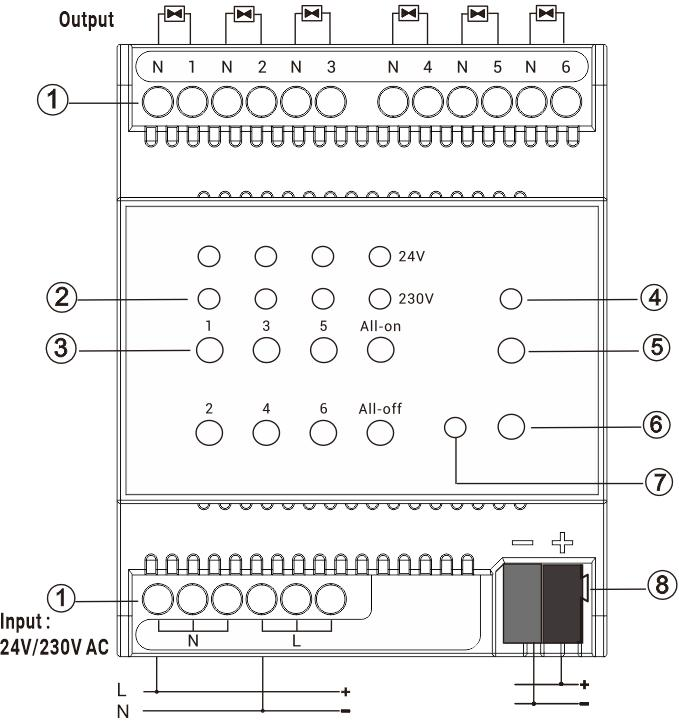

Wiring

1. 1Drive voltage input terminals and valve output terminals, 24 V AC or 230 V AC. N is bridged internally, so the outputs need no separate N connection.
2. 2Status LEDs for the valve outputs, and the 24 V and 230 V drive voltage indicators
3. 3Manual operation buttons for the valve outputs, with All-on and All-off
4. 4Man./Auto. status LED
5. 5Man./Auto. switch button
6. 6Programming button
7. 7Programming LED
8. 8KNX bus connection terminal
