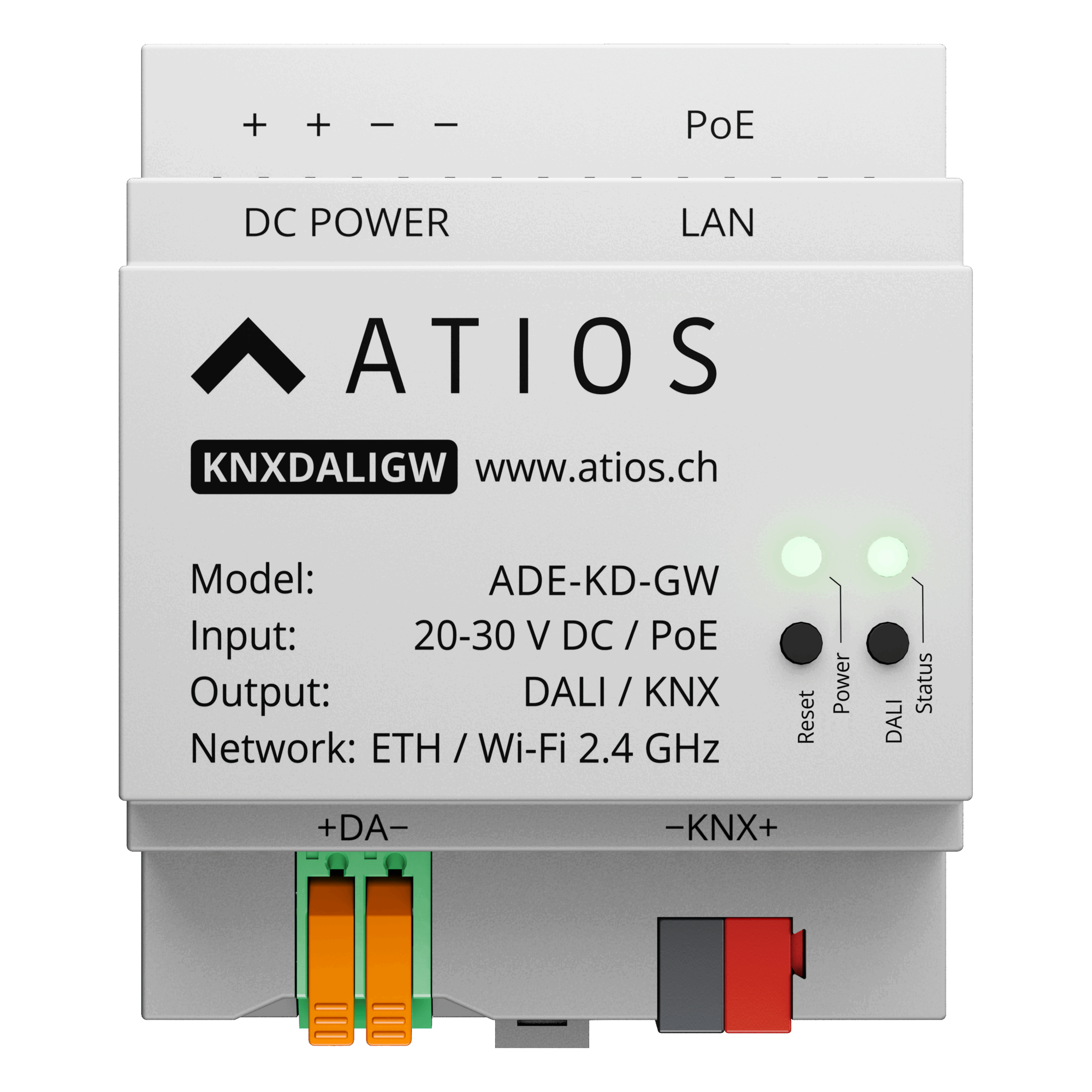

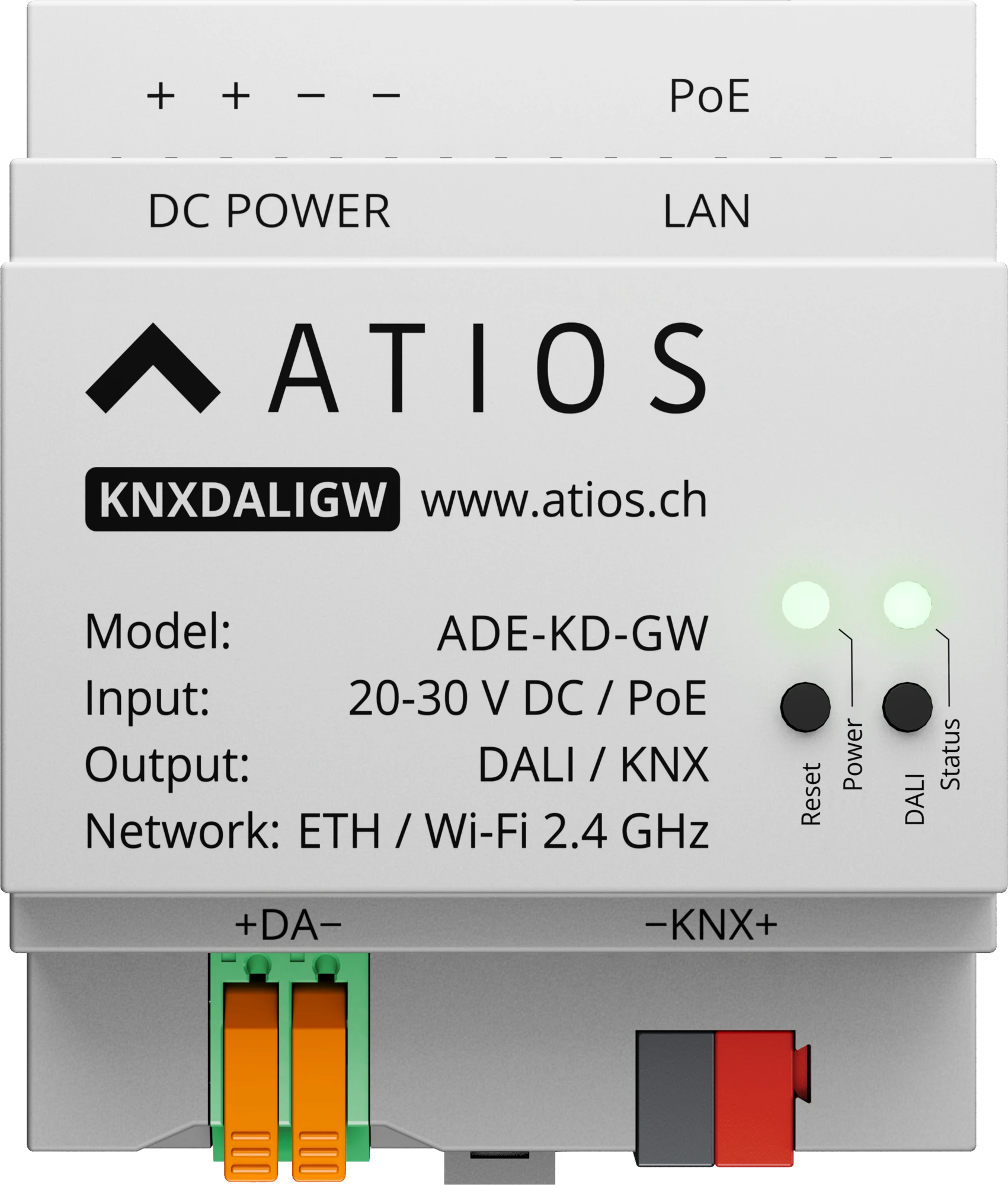

Atios KNX-DALI Gateway ADE-KD-GW Datasheet
Technical Specifications
| Power supply | Power over Ethernet 802.3af; or 20–30 V DC |
| Power consumption | 1 W, with DALI power supply enabled 5 W |
| KNX medium | TP256, twisted pair |
| DALI standard | DALI and DALI-2 IEC 62386 with multi-master support |
| DALI capacity | Up to 64 control gear and 16 groups |
| DALI colour control | DT8: tunable white (Kelvin) and RGB/HSV |
| DALI power supply | 250 mA, can be enabled/disabled in case of external supply |
| ETS product database | KNX-DALI gateway configuration via ETS (see ETS online catalog) |
| Ambient temperature | −5 °C to +45 °C |
| Dimensions | 70 × 85 × 60 mm |
| Mechanical data | DIN-rail device, installation width: 4 modules (TE) |
| Enclosure | ABS, weight 85 g |
| Control | 2 push buttons |
| Indicators | 2 multicolor status LEDs |
| Certifications | CE, RoHS, DALI-2 certified, ISO 9001:2015 |
Application area and features
- KNX-DALI gateway: controls up to 64 DALI control gear and 16 groups over the KNX bus, configured from ETS.
- Web Interface for addressing, grouping, and testing DALI lighting.
- Full DT8 colour control: tunable white in Kelvin and RGB/HSV colour on every DALI address.
- ETS product database objects: On/Off, On/Off status, relative dimming, value dimming, value status, HSV 2-byte object, HSV status, tunable white in Kelvin, tunable white status, for all 64 addresses, 16 groups, and broadcast.
- Integrated DALI power supply (250 mA), can be disabled when an external supply is used.
